7.0 inch IPS WS LCD TFT Screen
Technical Specifications
| Specification |
Value |
| Number of pixels |
1024×600 pixels |
| Active Area |
154.21×85.92mm |
| Module Outline |
163.54×96.74×2.47mm |
| Display Mode |
Normally Black |
| Viewing Angle (CR>10) |
80/80/80/80 (Typ) |
| Aspect Ratio |
16:9 |
| NTSC |
50% (Typ) |
| Contrast Ratio |
800 MIN, 1000 (Typ) |
| LCM Brightness |
250cd/m² (Typ)
500cd/m² (Typ)
800cd/m² (Typ)
1000cd/m² (Typ) |
| Interface |
RGB/LVDS |
| Operating Temperature |
-20°C to +70°C |
| Storage Temperature |
-30°C to +80°C |
Key Features
- High-quality IPS panel with wide viewing angles
- Multiple brightness options for various lighting conditions
- Compact module design with slim profile (2.47mm thickness)
- Wide operating temperature range for industrial applications
- Supports both RGB and LVDS interfaces
7-Inch High-Brightness TFT, 1024×600 TFT LCD Display, 1000 nits TFT LCD
Product: JT-7.0IPSTWWS
High-Brightness 1000 nits 7-Inch IPS TFT LCD Display
Elevate your projects with our high-brightness 7-inch IPS TFT LCD display, delivering 1000 nits of luminance and a vibrant resolution of 1024 × 600 pixels. Designed to produce sharp imagery and rich colors, this display is well-suited for a wide range of applications—including industrial machinery, handheld equipment, outdoor signage, and more.
Key Features
Exceptional Brightness: With 1000 nits output, the screen remains clearly visible even in direct sunlight, ideal for outdoor applications.
High-Quality IPS Technology: In-Plane Switching (IPS) ensures wide viewing angles and accurate color reproduction for an enhanced viewing experience.
RGB OR LVDS Interface: Equipped with a reliable RGB OR LVDS interface for straightforward integration into your system designs.
Capacitive Touch Panel (CTP) Support: Compatible with capacitive touch technology, offering smooth and responsive user interaction.
Versatile Applications: Suitable for diverse fields such as automotive, healthcare, industrial control, and consumer electronics.
Why Choose Our 7-Inch IPS TFT LCD Display?
Built for reliability and performance, this display delivers long-lasting operation even in demanding conditions. Whether you are building a prototype or launching a commercial product, its superior brightness and image quality make it an excellent display solution.
Specifications
Size: 7 inches
Resolution: 1024 × 600 pixels
Brightness: 1000 nits
Interface: RGB/LVDS
Touch Interface: I²C
Technology: IPS TFT
Operating Temperature: –30 °C to +80 °C
Upgrade your product’s functionality and visual appeal with our high-brightness 7-inch IPS TFT LCD display. Place your order today and move closer to integrating outstanding visual performance into your next project!
Electrical Characteristics
| Item |
Symbol |
Min |
Type |
Max |
Unit |
Test
condition
|
|
Power voltage
|
DVDD |
3.0 |
3.3 |
3.6 |
V |
- |
| AVDD |
9.4 |
9.6 |
9.8 |
V |
|
| VGH |
17 |
18 |
18.5 |
V |
|
| VGL |
-7 |
-6 |
-5.5 |
V |
|
| Input signal voltage |
VCOM |
3.1 |
3.3 |
3.5 |
V |
|
| Input logic high voltage |
VIH |
0.7DVD D |
- |
DVDD |
V |
|
| Input logic low voltage |
VIL |
0 |
|
0.3DVDD |
V |
|
|
Current for Driver
|
IGH |
- |
0.2 |
1 |
mA |
VGH= 16.0V |
| IGL |
- |
0.2 |
1 |
mA |
VGL=7.0V |
| IDVDD |
- |
4.0 |
1 |
mA |
DVDD=3.3V |
| IAVDD |
- |
20 |
50 |
mA |
AVDD=10.4V |
Backlight Specification
| Item |
Symbol |
Min |
Typ |
Max |
Unit |
| Forward Current |
IF |
-- |
320 |
- |
mA |
| Forward Voltage |
VF |
16.8 |
19.2 |
21 |
V |
| Life time |
|
- |
30000 |
|
H |

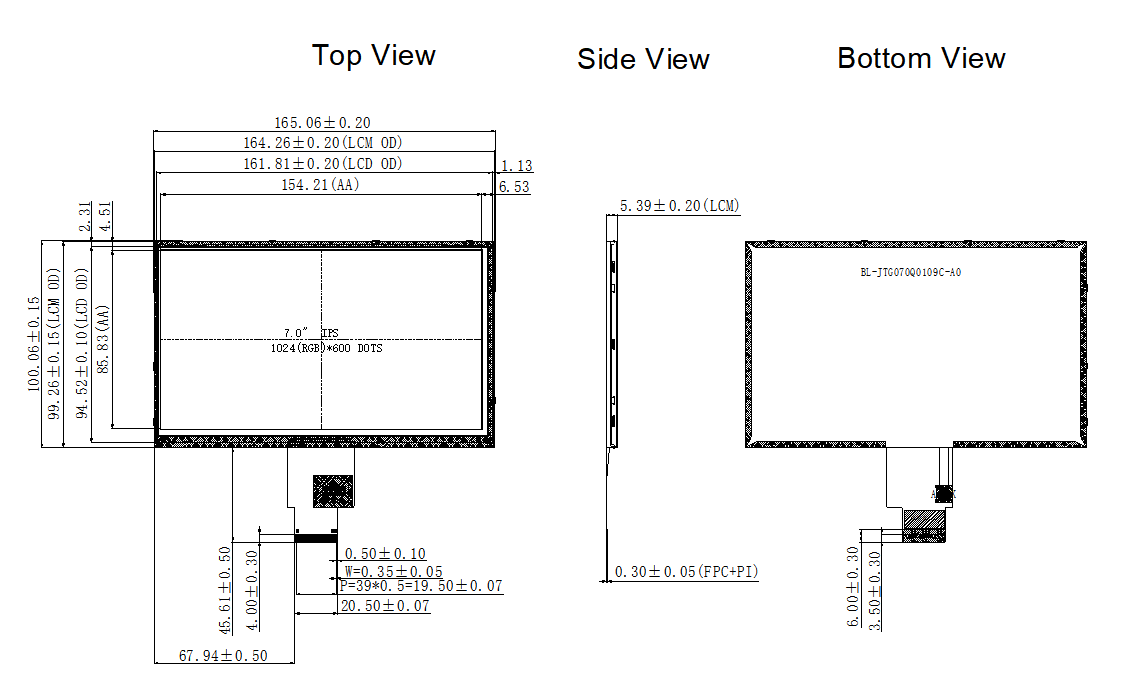

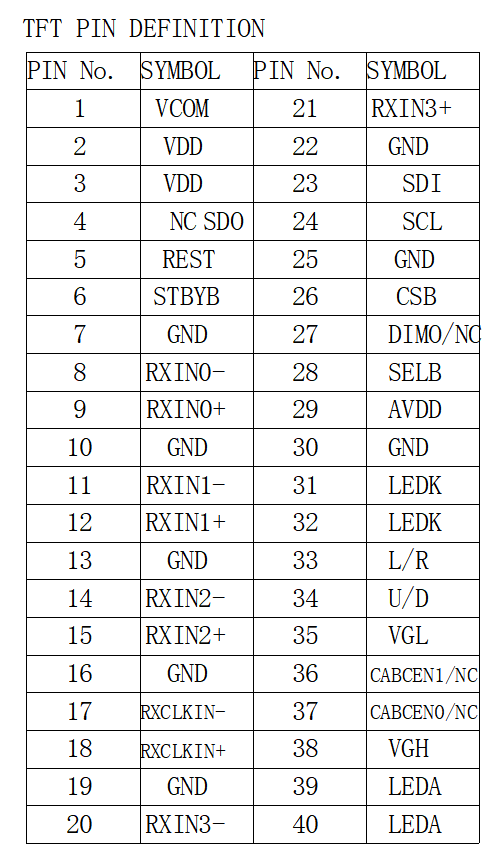

7.0" LCD 1024*600, 7.0 inch Landscape RGB/LVDS TFT LCD Drawing
