3.95 Inch IPS TFT LCD Display Module 720x720 Smart Home Display With MIPI Interface

Product Categories
Shenzhen Jingtai Liquid Crystal Display Technology Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

3.95 Inch IPS TFT LCD Display Module 720x720 Smart Home Display With MIPI Interface

  • 1
  • 2

MOQ : 5pcs

Brand Name : Jingtai

Key Words : 3.95 Inch IPS TFT

Delivery Time : 1-5 weeks

Certification : ISO9001 / ISO14000

Viewing Angle : 85/85/85/85

Touch Screen : CTP

CTP Structure : GF/GFF/GG

Resolution : 720*720

Payment Terms : T/T,Western Union,L/C,MoneyGram,D/A,D/P

Packaging Details : Standard Exportation Package

Price : 1-20

Model Number : JT-3.95IPS2SSH

Interface Definition : SPI+RGB/MIPI

CTP Interface : 12c

Place of Origin : Shenzhen/China

Supply Ability : 2000K Pcs Per Month

Luminance : 250 cd/m²(Typ) 500 cd/m²(Typ)

Contact Now

3.95 Inch IPS TFT LCD Display Module 720x720 Smart Home Display With MIPI Interface

Product Overview

This 3.95 inch IPS TFT LCD Display Module features a 720×720 resolution and a 1:1 square display format. Designed for Smart Home Display applications, the module is suitable for Embedded Display systems, smart control terminals and automation control panels. The IPS TFT LCD structure supports a viewing angle of 85/85/85/85, helping maintain clear screen visibility from different viewing positions.


Display Performance

• The TFT LCD Display Module adopts Normally Black display mode.
• IPS TFT LCD technology provides a viewing angle of 85/85/85/85 for clear visibility from different directions.
• The display supports a typical contrast ratio of 1200:1 and a typical NTSC color gamut of 68%.
• Brightness options of 250 cd/m² and 500 cd/m² are available for different Smart Home Display requirements.


Interface And Integration

This IPS TFT LCD module supports MIPI Interface, SPI Interface and RGB Interface configurations. Multiple interface options provide flexibility for Embedded Display development and Smart Home Display products. The module can be integrated into automation control panels, user interfaces and various embedded systems requiring a compact square display solution.


Applications

• Suitable for Smart Home Display systems and Embedded Display equipment.
• Can be integrated into automation control panels and intelligent control terminals.
• Applicable to wall switches, environmental monitoring devices and smart control products.
• Suitable for user interfaces and home automation equipment requiring a compact square TFT LCD Display Module.


Product Specifications

Number Of Pixels

720*720pixels

Active Area

71.93*71.93mm

Module Outline

74.83*78.98*2.02mm

Aspect Ratio

1:1

Display Model

Normally Black

Viewing Angle(CR>10)

85/85/85/85

Contrast Ratio

900(Min) 1200(Typ)

NTSC

68%Typ

LCM Brightness

250 cd/m²(Typ) 500 cd/m²(Typ)

Interface

SPI+RGB/MIPI

Operating Temperature

-20~+70℃

Storage Temperature

-30~+80℃

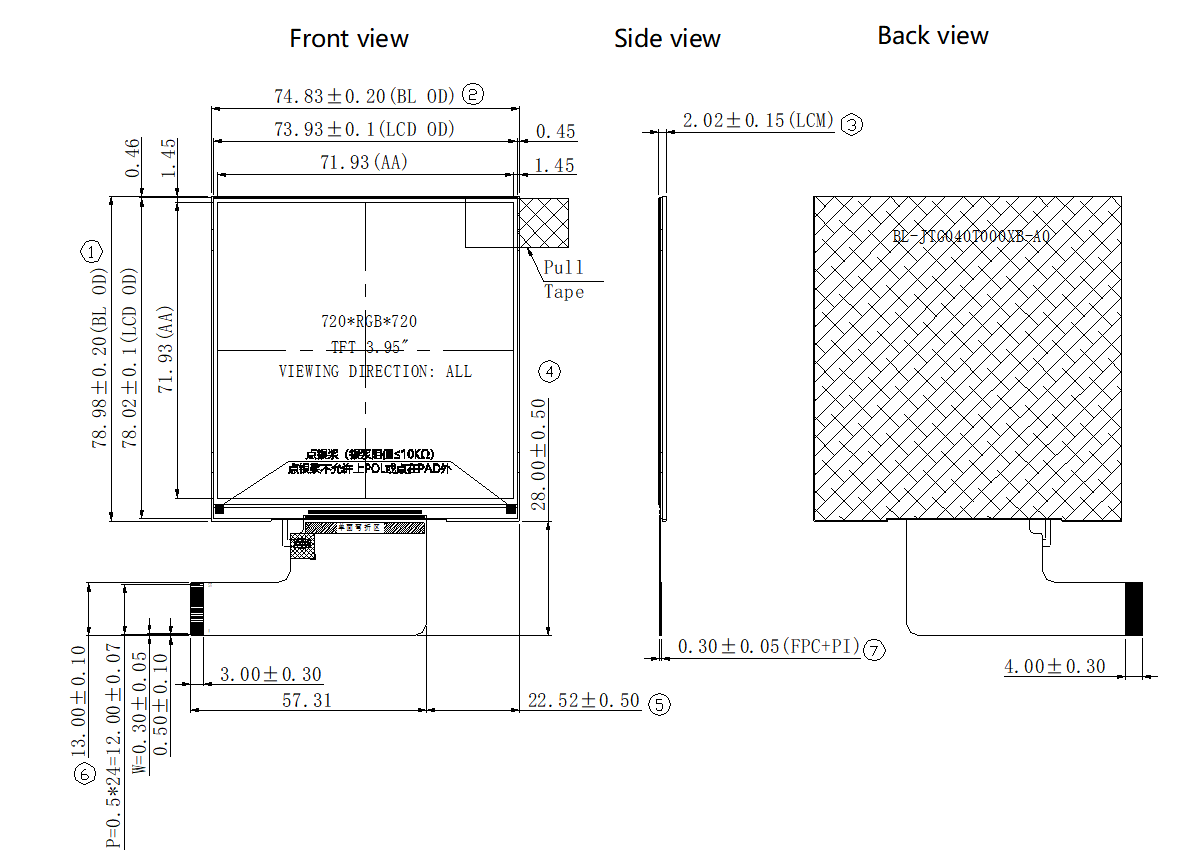

3.95 Inch IPS TFT LCD Display Module Drawing



3.95 Inch IPS TFT LCD Display Module 720x720 Smart Home Display With MIPI Interface

3.95 Inch IPS TFT LCD Display Module 720x720 Smart Home Display With MIPI Interface

3.95 Inch IPS TFT LCD Display Module 720x720 Smart Home Display With MIPI Interface
